Modulized design for highly customized request and easy to maintain
efficient heat dissipation solution to secure laser quality
modulized laser module to combine into ultimate laser output

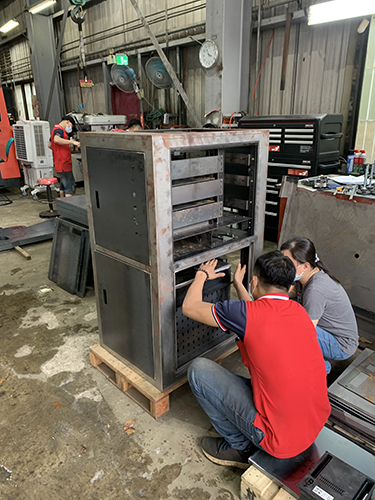

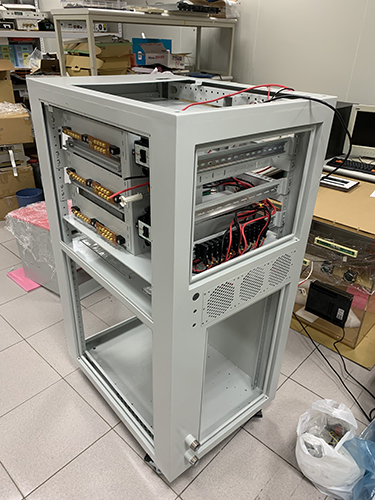

multi-decked system for great flexibility and maintainance
Context
This laser unit categorized as a high power fiber laser system and
research into related
water cooling technology. Regarding the
product
development protocol,
the
IPG
and
SPI laser were set as the benchmarks of this field. In this phase,
developing
a competitive product plan [#1]
and unfolding a work plan [#2]
are critical inputs to kick off our project.
Product Plan is the process of creating a product idea and following through on it until the product is introduced to the market.
Work Plan often associated with project management.

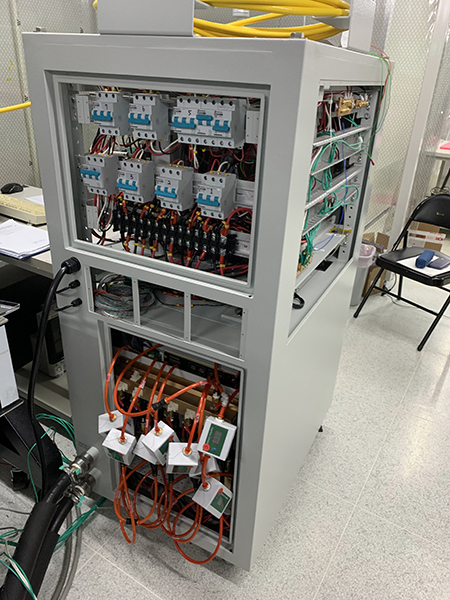

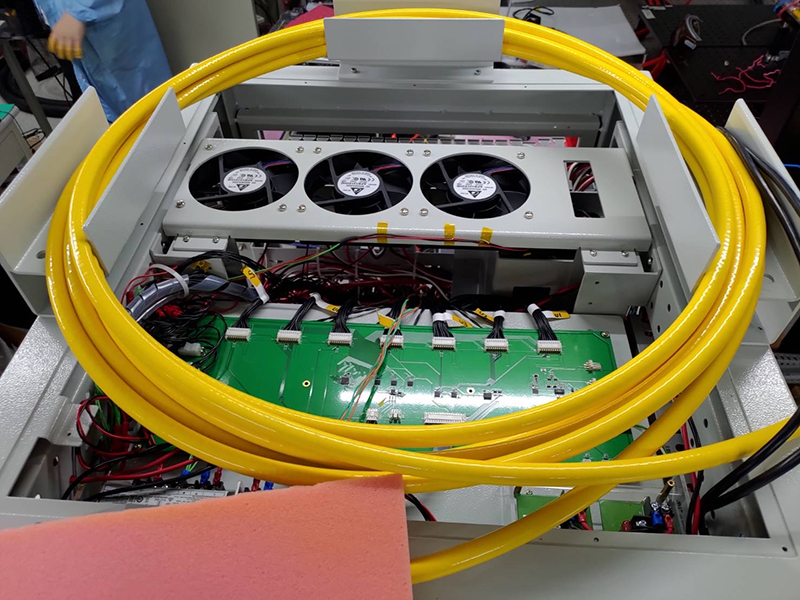

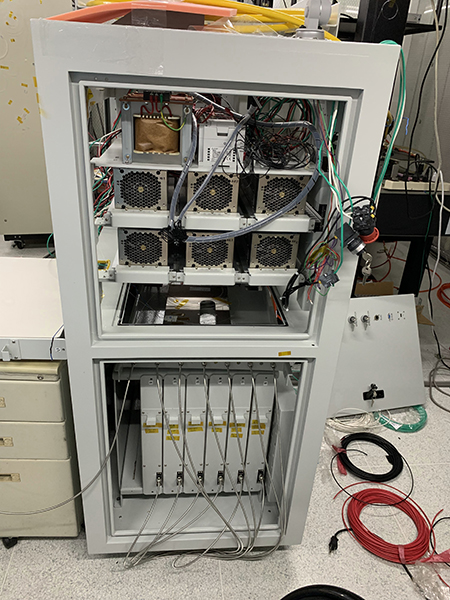

Product Configuration
A compact unit containing an Pump
Laser Module,
power supply, and control units is our goal. Regarding the optical units, to
achieve no more than 4000-watt output power laser. It consists of 7 units of the
600-watt laser module. Each of them has employed a water cooling panel and dissipated
thermal emission by a chiller. The expertises in water cooling fixtures and chillers are
theAAVID
technology
and TONG
DEAN, respectively.

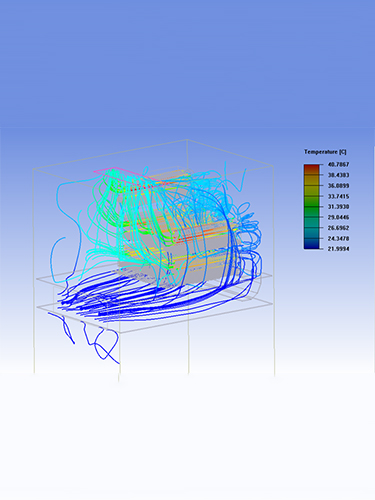

In the EVT and DVT phase, some tests were conducted to prove concepts are worked out, including capacity of dehumidifier for chassis, to read the test report please click HERE, and thermal simulation of electronic components and cooling solution by mechanical engineer team.
